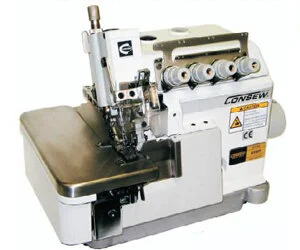

Consew 694EX

Product Description

High Speed Overlock Sewing Machine

Features:

2 Needle, 4 Thread High Speed Overlock Sewing Machine with Fully Automatic Lubrication, Differential Feed With Micrometric Adjustment, Pushbutton Stitch Regulator for Medium to Heavy Weight Materials

• Speed, Max. up to 7500 s.p.m. (depending on thread, material and application)

• Fully automatic lubrication with visual flow controls

• Lubricating oil continuously filtered by replaceable filter

• External cooling of oil supply

• Silicone based needle cooling and lubricating system

• Differential feed with micrometric adjustment for shirring and stretching.  Ratio up to 4 to 1.

• Push-button stitch regulator

• Intermittent action possible

• Standard type B-27 needles

• Reduced noise and vibration when operating at high speeds

Applications:

• For Mock Safety Stitch – suitable for seaming sides and joining front and side panels on ladies swim suits, children’s play pants; closing sides on ladies panties; setting sleeves on ladies uniform dresses and knitted sport shirts; sewing cuffs to sleeves and attaching pocket pieces to front and back on ladies robes; setting body lining on men’s raincoats, etc. Equipped to handle medium to heavy weight materials and designed for sewing stretchable materials or fabrics which need elasticity in stitching.

Additional Information:

• 694EX Parts Book

• 694EX Instruction Manual

• 694EX Spec Sheet (PDF)
